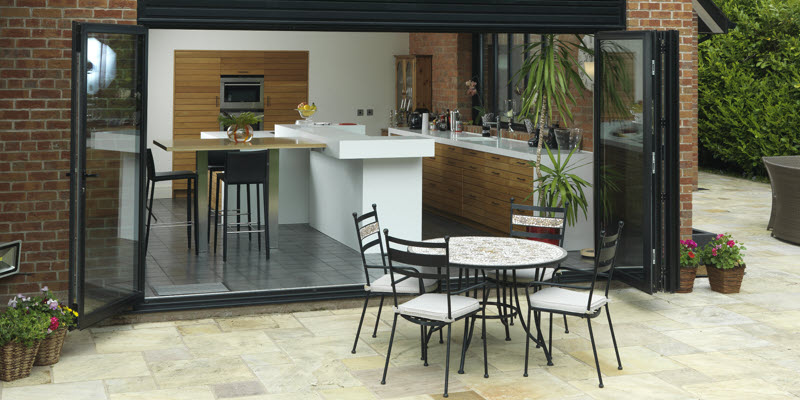

Aluminium Bi-Folding Doors are one of the most popular home improvements we offer. They bring light and space into your home as well as providing a large clear opening.
Aluminium doors are renowned for their ease of operation and durability. Our doors also benefit from a dual roller system at the bottom with the panel tops also guided by rollers for smooth running and easy operation. There are no heavy-weight lintels required as the doors are bottom rolling and not hung from the top.
They come in a wide range of different finishes including over 200 RAL colours. They are built to last with high quality hardware to provide a bi-folding door that slides smoothly with minimum effort.
Our Aluminium Bi Fold doors are manufactured from slim 60mm thermally broken profiles to ensure maximum glass widths can be acheived using the minimum number of panels. This allows for more natural light and unobstructed views of the outside world. There are no additional mullions required between the panels that broaden the sight lines so when panels are folding and sliding in the same direction, the width of the aluminium from edge of glass to edge of glass is just 132mm. Individual door panels can be up to 1 metre wide to provide wide glass apertures using minimum aluminium profiles which allows natural light to flood into the room.
Handle Options

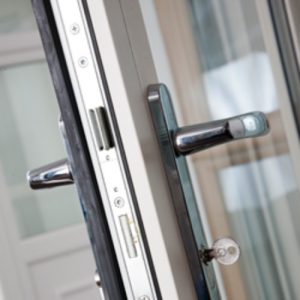

Lever handles operate the hook bolt locking system on traffic doors and provide external key access whilst intermediate panel shoot bolt locking is operated by internal fold-flat handles as shown. Handles are available in white, chrome or black finishes but can be supplied to any RAL colour at extra cost. Please note that the style of traffic door handles will differ when RAL colour handles are specified. ‘D’ handles (black or chrome only) are fitted to the hinges of the intermediate panels to allow easy opening and closing of the bifold doors.
High Security Locking
Our Visofold aluminium folding doors feature high security shoot bolt locking as standard and where available traffic doors are fitted with multi-point hook bolt locking to provide optimum security. The locking system, hinges and running gear are fully concealed when the door is closed ensuring that there is no opportunity for an intruder to gain access by tampering with the door gearing, hinges and fixings.
Open In or Out

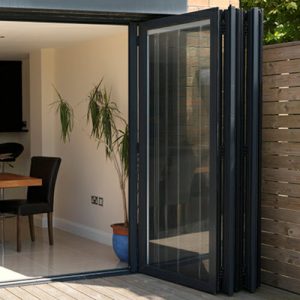

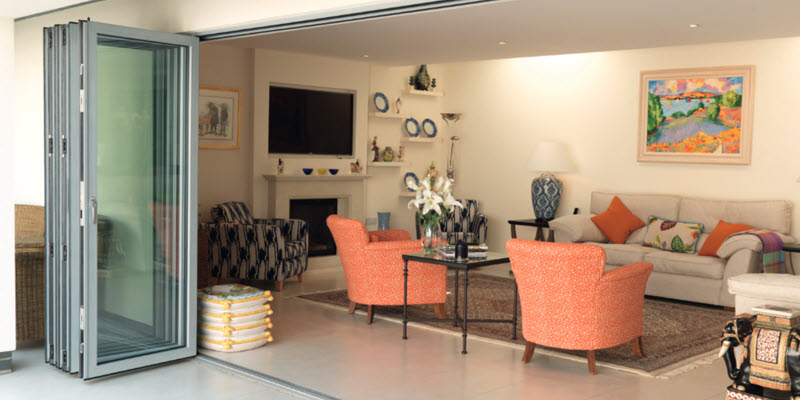

As you can see here when fully opened the panels fold and slide to stack neatly together and the remaining hinged panel will be retained by the magnetic chrome catch shown at the bottom of the door. Your new bi-fold door can be specified to stack inwards or outwards at no additional cost to suit your specific requirements and since every door is made to order you can be sure of a perfect fit.
Hinges/Rollers
All hinge fixings are concealed when the door is closed with only the knuckle of the hinge visible ensuring the hinges cannot be tampered with from the outside. Roller hinges feature 4 stainless steel rollers running on dual tracks and are fitted to top and bottom of sliding panels for smooth and effortless operation. The rollers are fully enclosed in a metal casing for good looks and to help keep them clean. Hinges are supplied in black finish only.
Main Features
- Ultra slim sight lines of just 132mm
- Aluminium Profiles provide security and slim sight lines
- Low Threshold Option
- Polyamide Thermal Break for superior insulation
- High Performance Weatherseals
- Internally glazed for high security
- 28mm Clear Toughened STAYCOOL Double Glazing 1.1 U-value
- Solar Control Glass 57% Heat Reflection 35% Glare Reduction
- Traffic doors on some styles enable ease of use in the winter
- Available in many different RAL colours with dual colour option
- High security locking on traffic doors and intermediate door sashes
- Doors can be specified to fold inwards or outwards and slide left or right

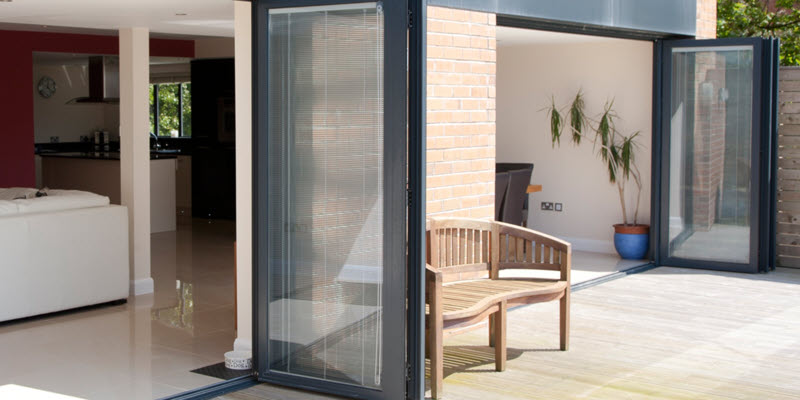

- Optional integral blinds available
